Hardware Settings | EPOS POS System

Typically hardware settings will be configured by EPOS Technicians upon installation.

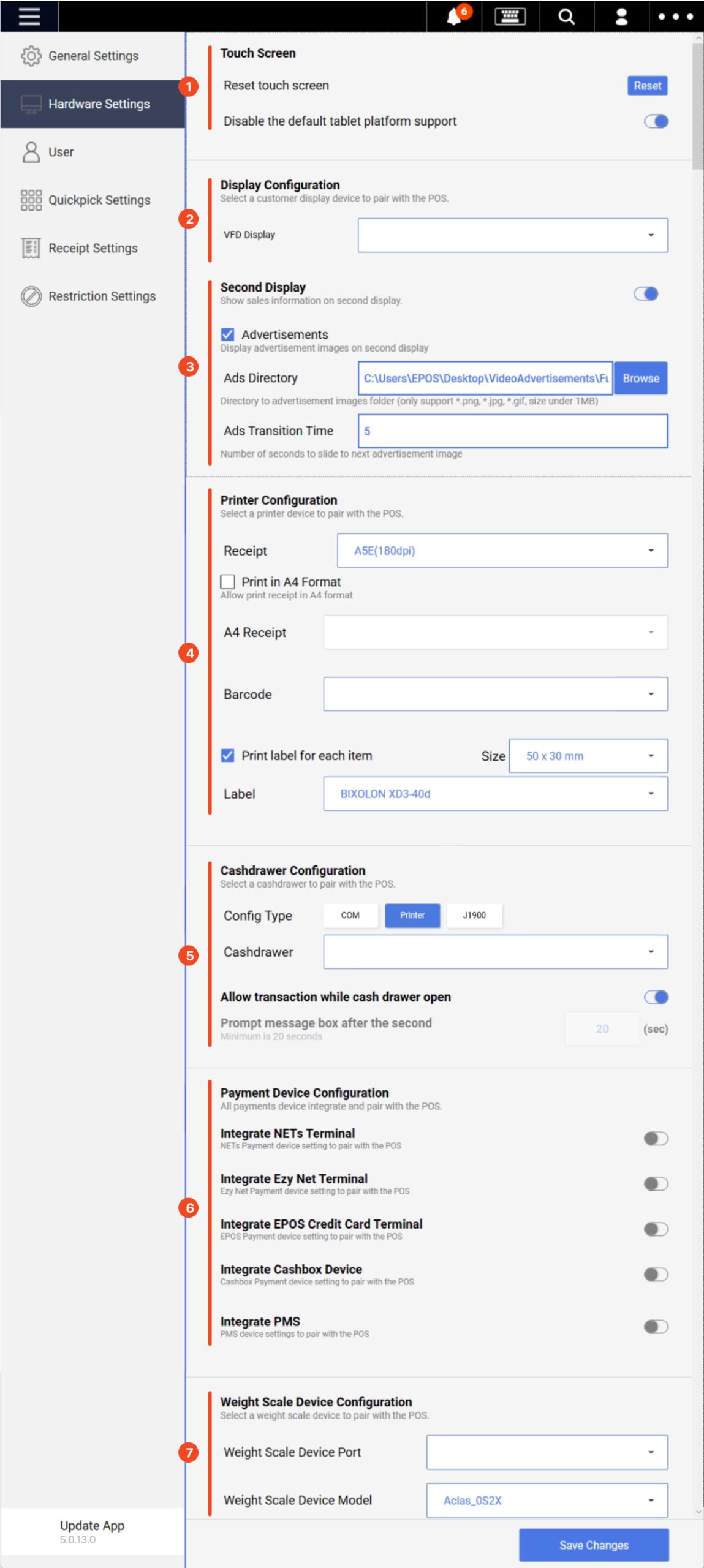

The following table will describe the typical settings for EPOS Hardware.



1. Touch Screen

Reset button – will trigger the FRONTEND POS to restart

Disable the default tablet platform support – this setting should be enabled.



2. Display Configuration

VFD Display – COM 4



3. Second Display

Default Setting – Disabled.

If there is a 15” / 10” second display supplied by EPOS, this setting will be enabled.

    • ☑️ Advertisements to enable for video advertisements on the second display
    • Ads Directory: Click on Browse to select the folder location
    • Ads Transition Time: Input the duration (in seconds) for each image/video before it slides to the next image/video



4. Printer Configuration

    • Receipt – BIXOLON_USB / BIXOLON_COM
    • Invoice – user’s printer (not supplied by EPOS)
    • Barcode – BIXOLON-XD3-40d
    • ☑️ Print Label for each item
      • Size: 50 x 30 mm
      • Label: BIXOLON XD3-40d



5. Cash Drawer Configuration

Config Type – Com

Cashdrawer – Com5



6. Payment Device Configuration

This setting is only for users who are using NETS / EzyNet payment devices to process order payments.

    • Default Setting – Disabled.

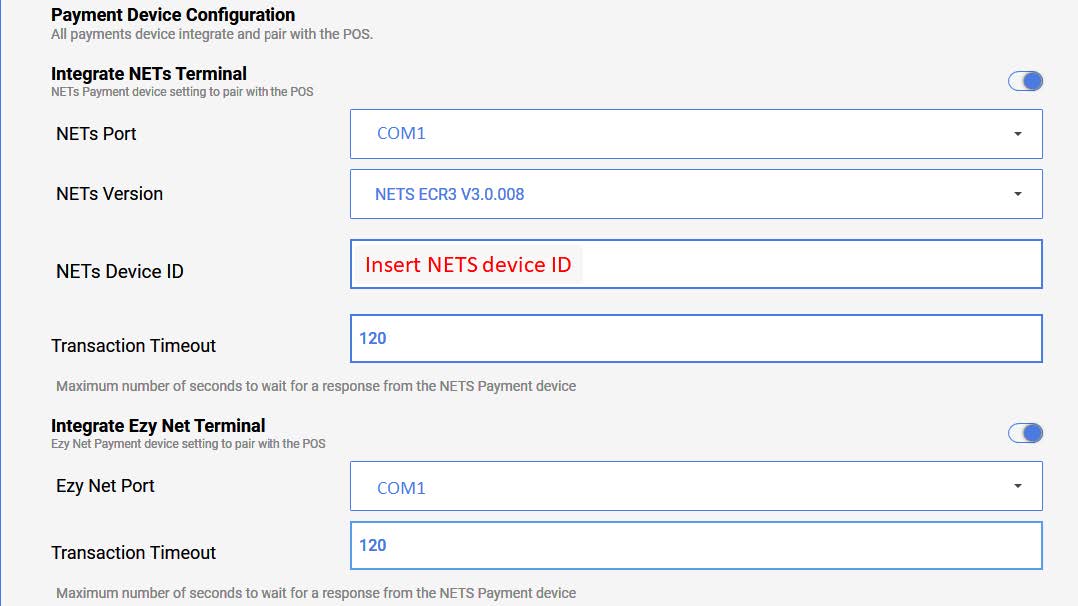

    • When enabled, settings is shown as below



7. Weight Scale Configuration

This setting is only for users who are using Barcode Printing Weighing Scale supplied by EPOS.

Weight Scale Device Port – COM1
