Follow the steps below on how to print barcode on the frontend POS



From the Sales Screen click on POS Menu and select Barcode Printing, users will be able to print barcodes from the FRONTEND POS with a connected barcode printer. To print a barcode, follow the instructions below.

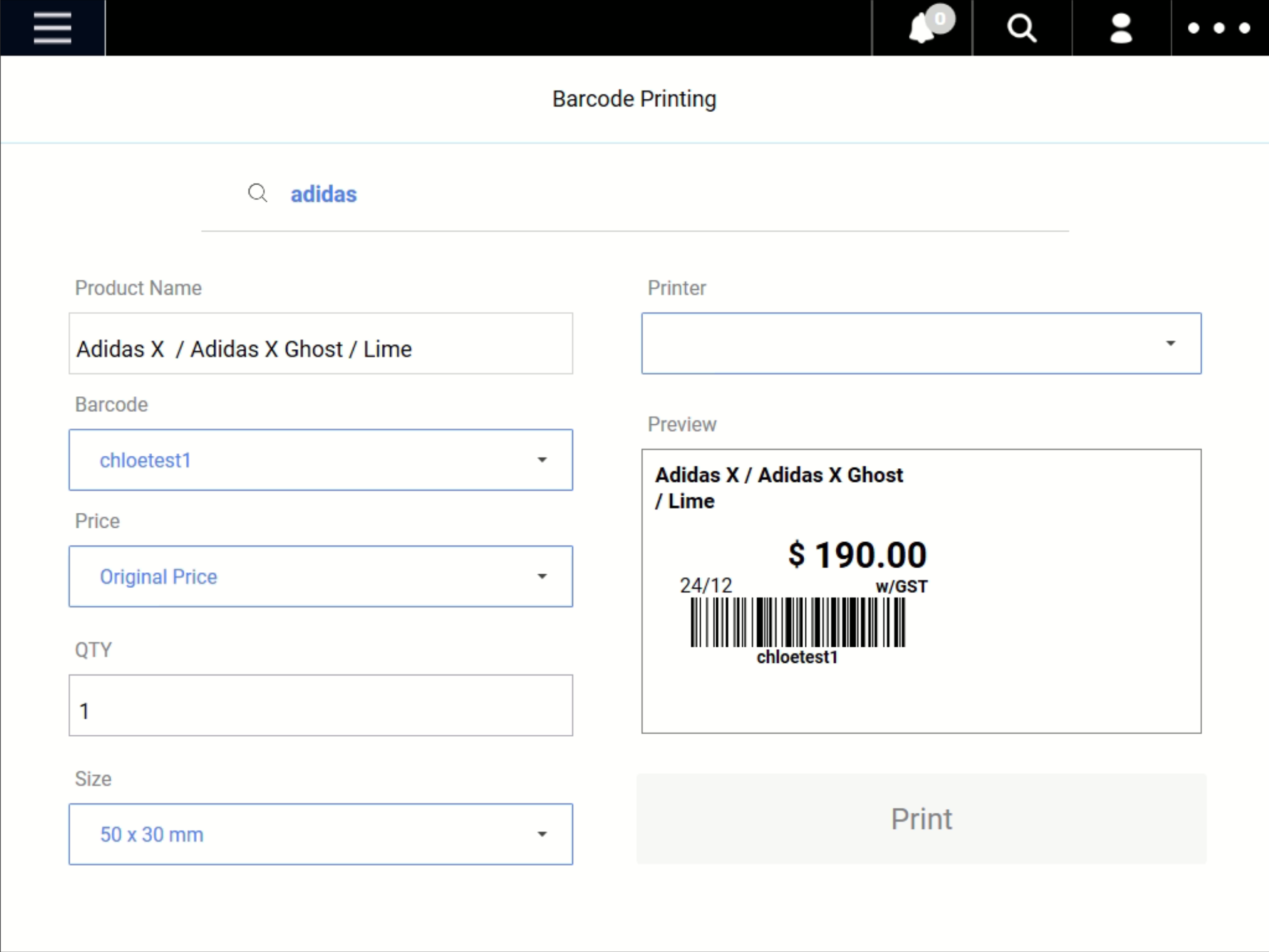

1 (ai) In the Barcode Printing window, search for the product.

If the product has more than 1 barcode, the default barcode will be selected.

💡If a product is created with a barcode in the BACKEND PORTAL, the highlighted fields will be auto-filled.

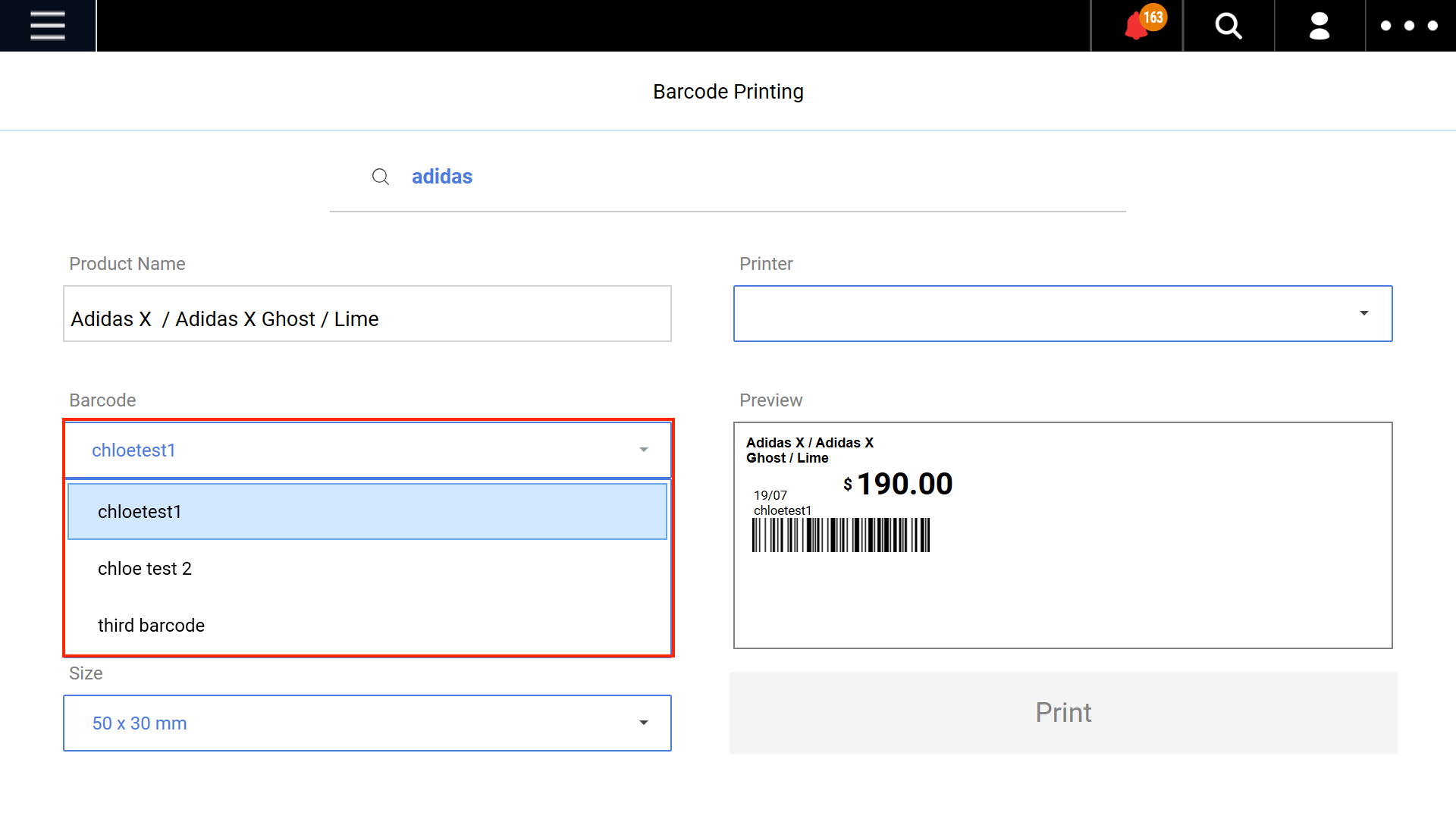

1 (aii) If you would like to print the other barcode for that same product, click on the barcode field, and choose the barcode that you want from the dropdown list.



1(b) If the searched product does not carry any barcodes, an error message will be shown.



1 (c) Barcodes cannot be printed If the barcode of the product has more than 13 characters.

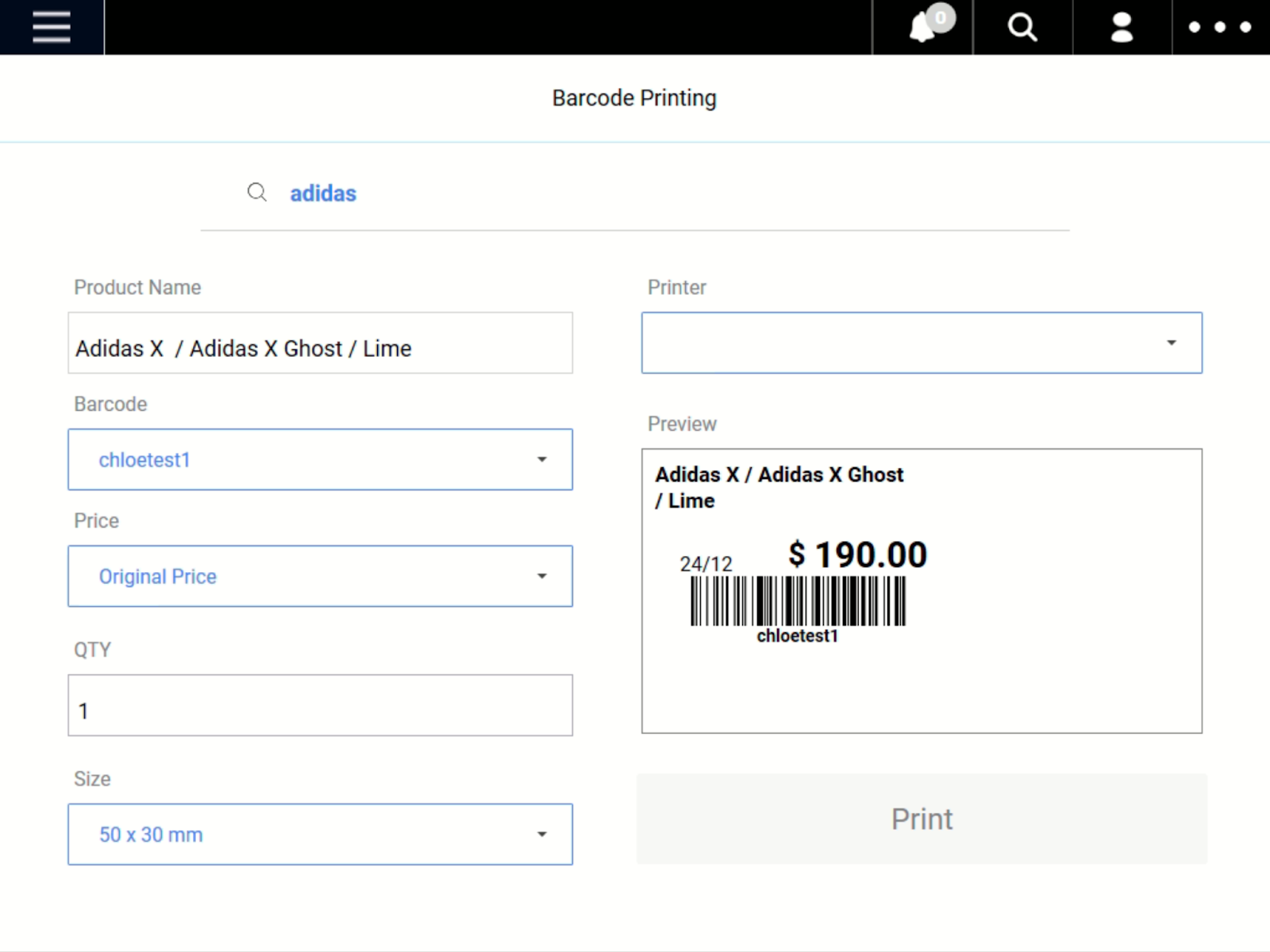

2. Insert the quantity of barcodes to be printed.



3. Select the barcode size to be printed, depending on the paper/sticker size.

💡Typical size will be 50 x 30mm



4. Select the Printer to print the barcodes

💡EPOS supplied barcode printer will be typically BIXOLON-XD3-40d



5. Finally, click on Print to begin printing the barcodes.
